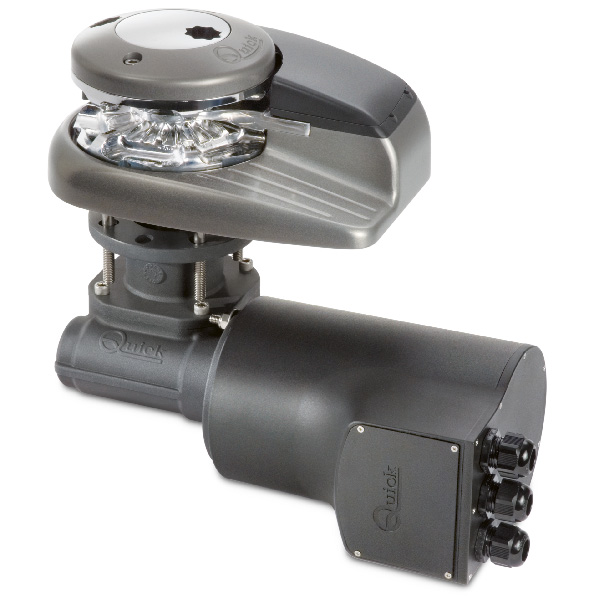

AL3 Vertical Windlass
Aleph 700 W | 7 – 10 m | 23 – 33 ft |
Aleph 1000 W | 10 – 14 m | 33 – 46 ft |
Aleph 1500 W | 12 – 15 m | 39 – 49 ft |
The indication may vary according to the boat type and the anchor-rode type
Description

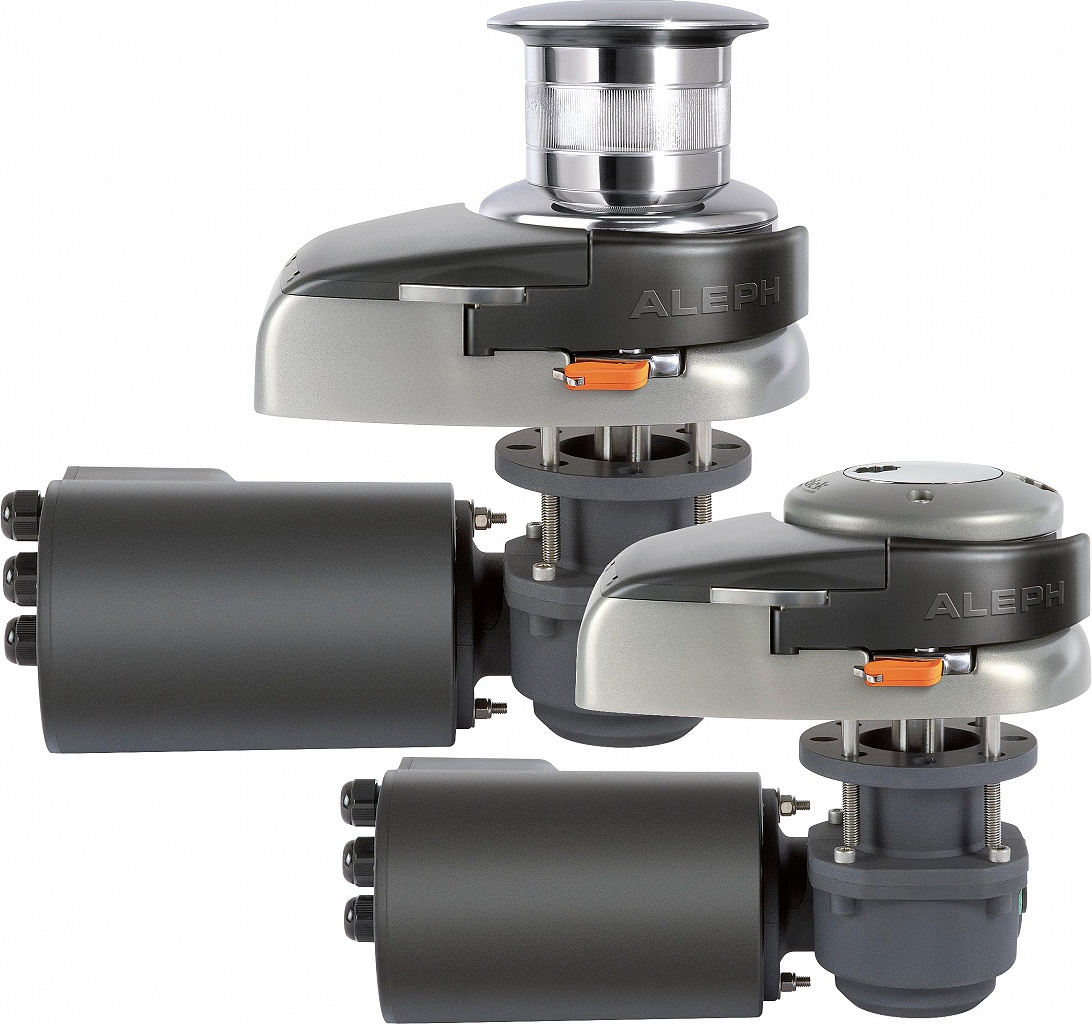

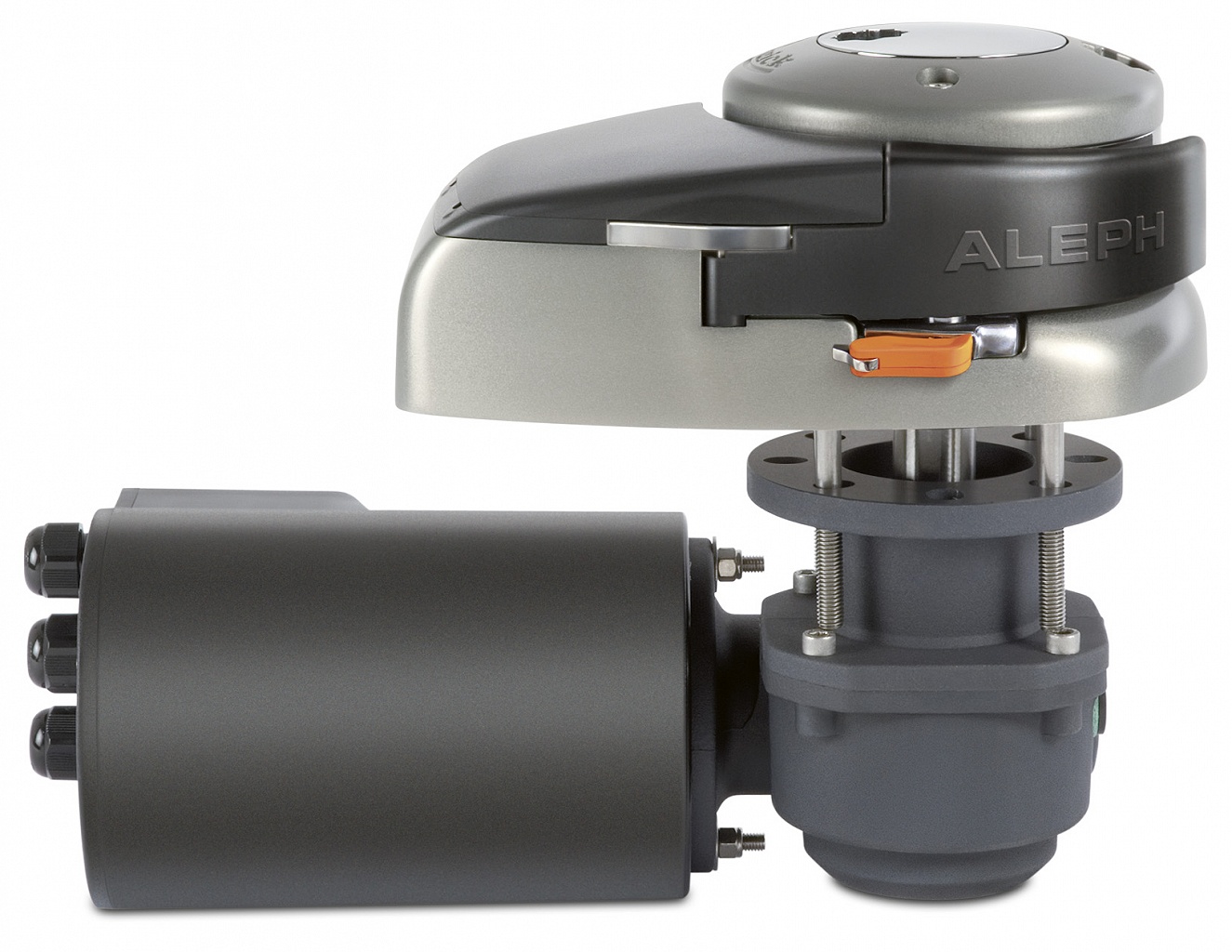

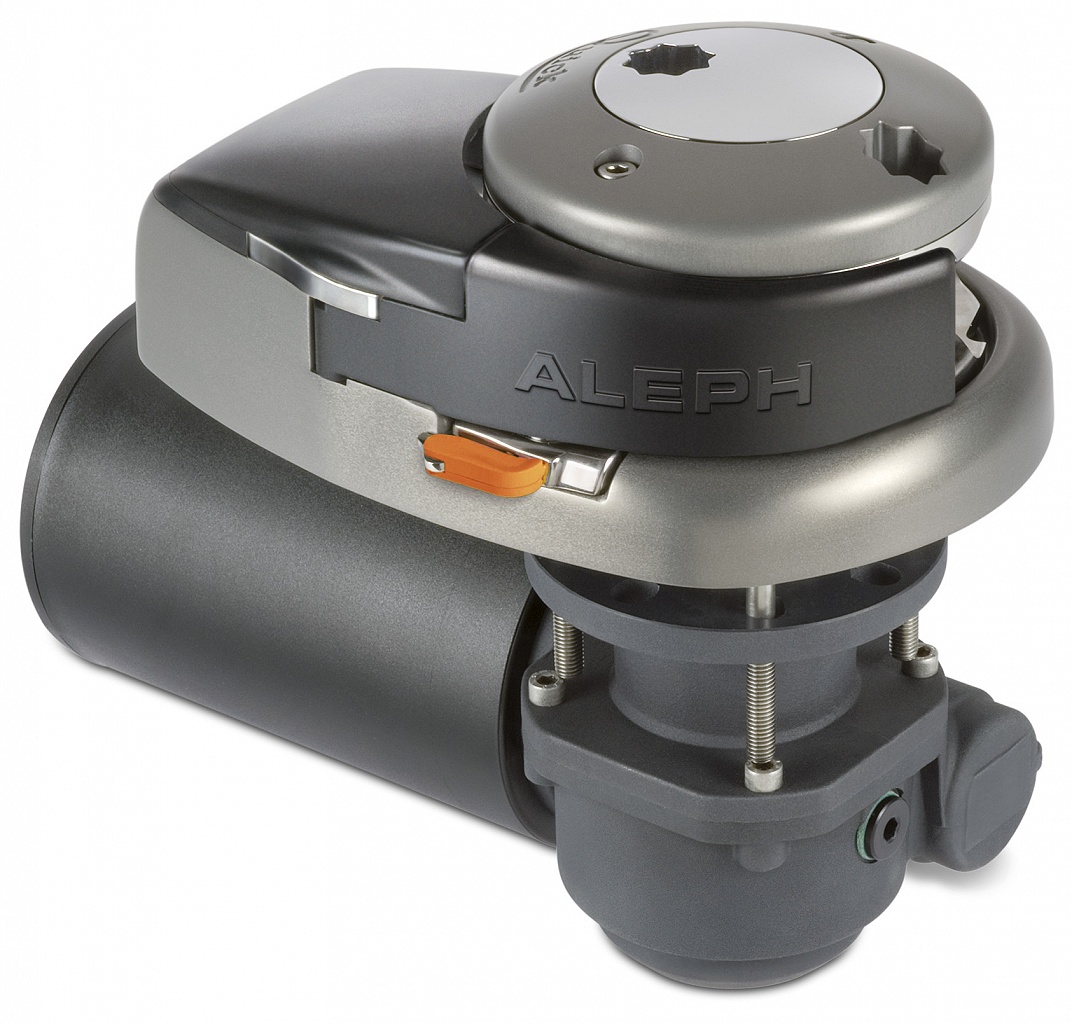

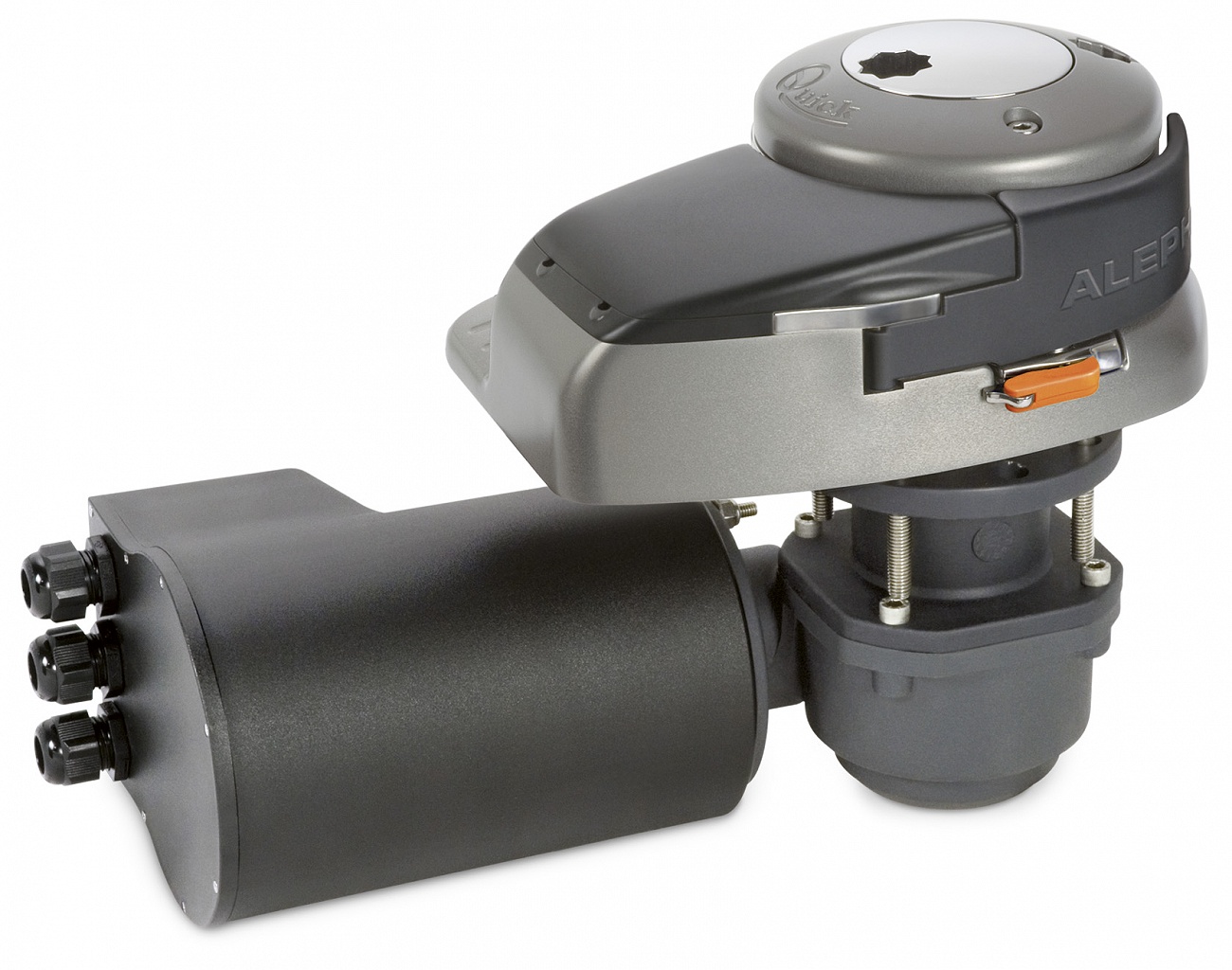

The AL3 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of anodized aluminum in hard oxide which is a durable element when dealing with harsh marine environments. It comes in different variations such as with or without the drum capstan for rope retrieval as well as various gypsy sizes for rope and chain retrieval. Equipped with an emergency manual lift system you can easily retrieve your anchor during instances when you may lose battery power on your boat. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and an easy to open inspection lid. The package is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.
GYPSY | 8 mm – 5/16″ | 10 mm – 3/8″ | |||||
CHAIN | 8 mm | 8 mm | 5/16″ | 5/16″ | 10 mm | 3/8″ | |
DIN 766 | ISO | G4 | BBB | ISO | G4 | ||
ROPE | 1/2″ (12,7 mm) – 9/16″ (14,2 mm) – 5/8″ (15,8 mm) | 5/8″ (15,8 mm) |
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Slim Splice Quick” system.
MODELS | T6315-12 | T6315-24 |
700 W | 12 V | 12 V |
1000 W | 12 V | 24 V |
1500 W | 12 V | 24 V |
