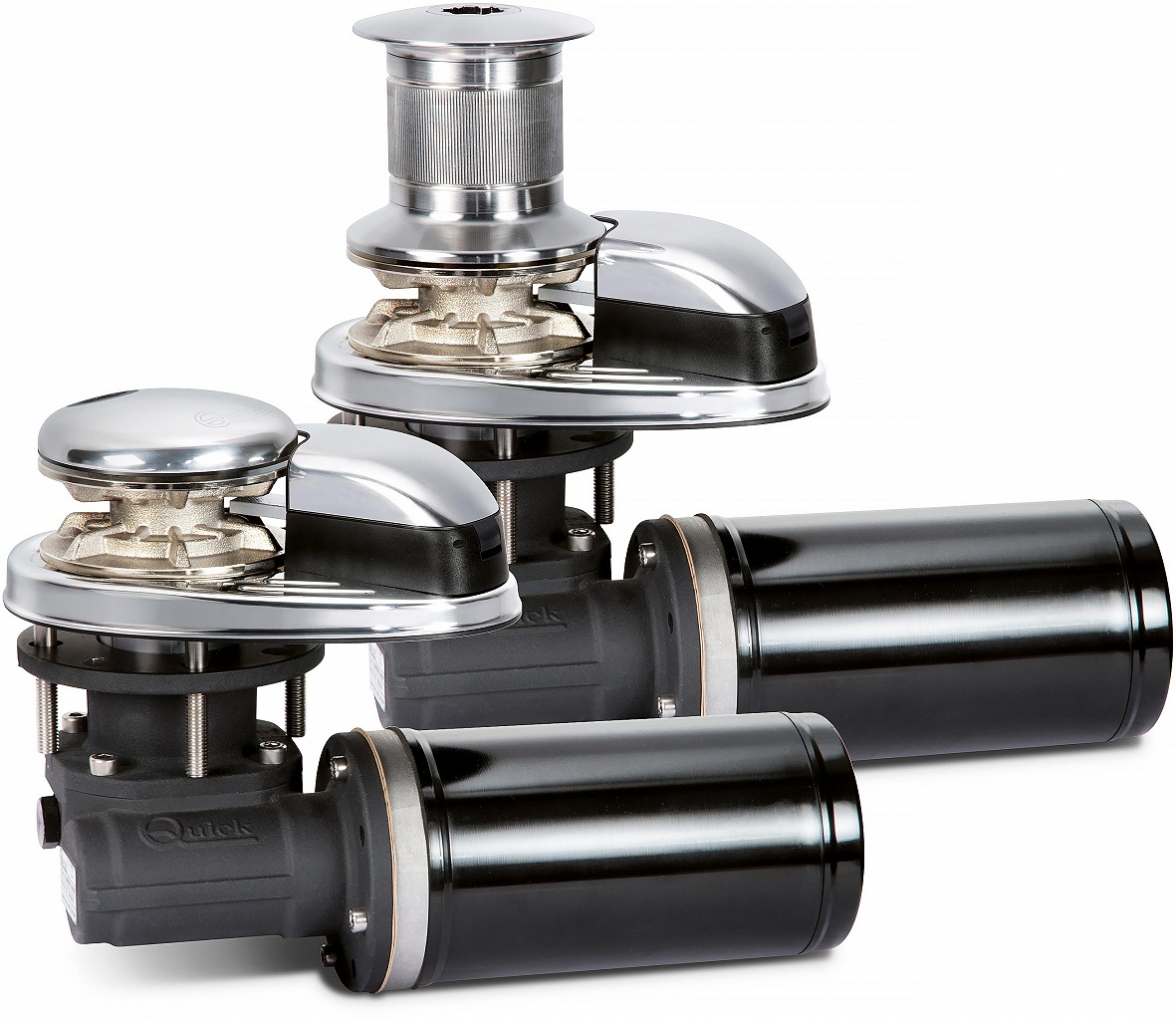

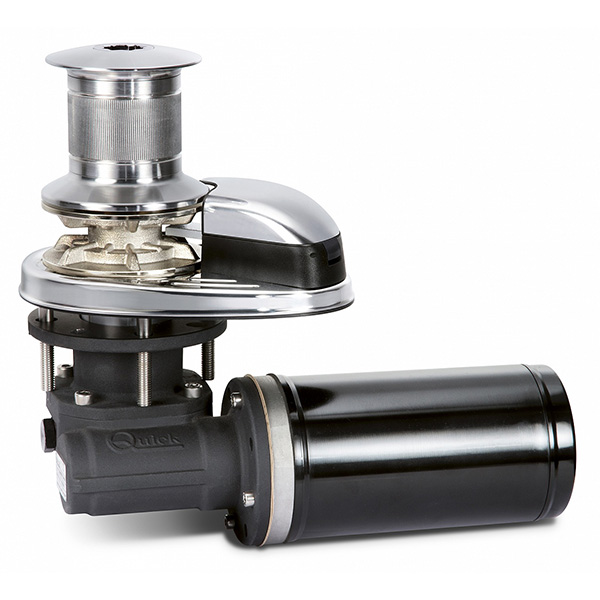

DP1 Vertical Windlass with Drum

DP1 Vertical Windlass with Drum

2024-01-10 0

FOR BOATS FROM 5 TO 9 METERS (16 – 29 FT)
DP1 300 W 12V 5 – 7,5 m 16 – 25 ft
DP1 500 W 12V 5 – 8,5 m 16 – 28 ft
DP1 500 W 24V 5 – 8,5 m 16 – 28 ft
DP1 500 W HS 12V 5 – 7,5 m 16 – 25 ft
DP1 500 W HS 24V 5 – 8,5 m 16 – 28 ft

The indication may vary according to the boat type and the anchor-rode type

SKU: DP1 D - Categories: , Tags: ,

Description

The DP1 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. It is a Chain Only unit. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and inspection lid. The package is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.

GYPSY 6 mm 1/4″
CHAIN 6 mm 6 mm 1/4″
DIN 766 ISO BBB

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system.

Supplied accessories standard

Solenoid Units

MODELS T6415-12 T6415-24
300 W 12 V
500 W 12 V 24 V
500 W HiSpeed 12 V 24 V
