DK6 Y Vertical Windlass with Drum
Description

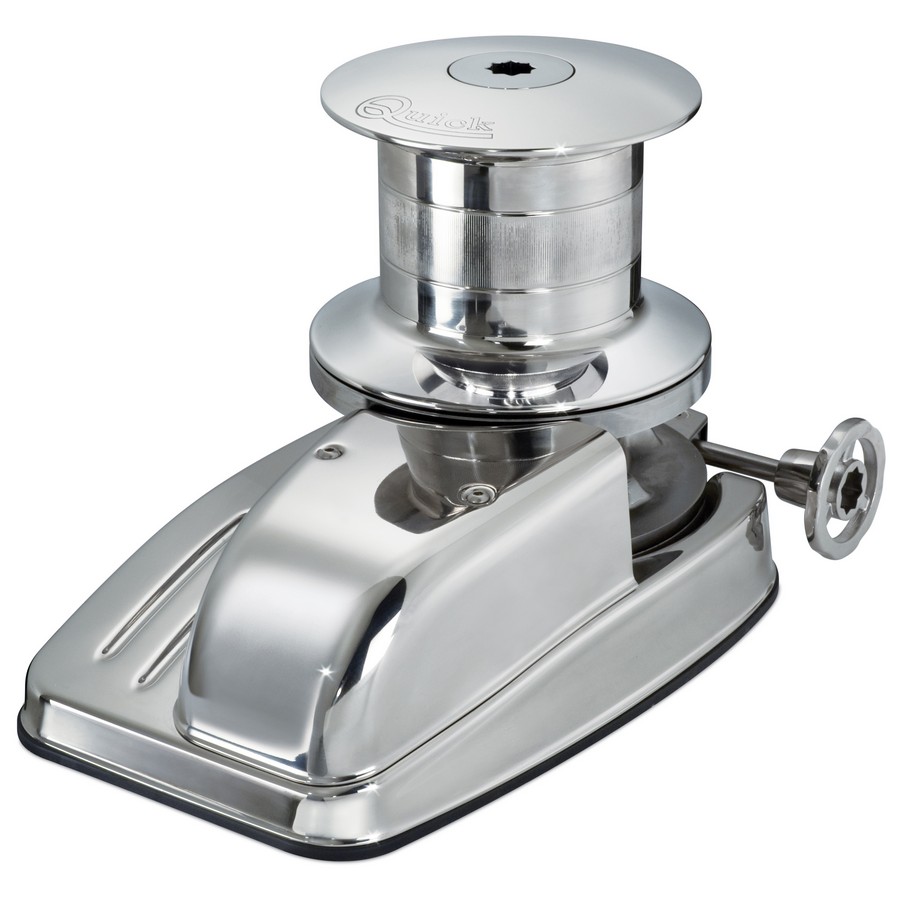

The Duke DK6 is a vertical application windlass with drum perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval, chain stopper, and various gypsy sizes for rope and chain retrieval. Additional features include an IP66 watertight motor, anodized aluminum gearbox, and inspection lid. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.
| Duke | 3000 W | DC | 18 – 26 m | 60 – 85 ft |
| Duke | 3500 W | DC | 22 – 29 m | 75 – 95 ft |
| Duke | 4000 W | AC | 18 – 29 m | 60 – 95 ft |
| Duke | 5500 W | AC | 22 – 32 m | 75 – 105 ft |
| Duke | Hydro | 20 – 32 m | 60 – 105 ft |
The indication may vary according to the boat type and the anchor-rode type
| GYPSY | 12-13 mm | 14 mm – 1/2″ | 16 mm | ||||||
| CHAIN | 12 mm | 13 mm | 7/16″ | 14 mm | 14 mm | 1/2″” | 16 mm | 16 mm | |
| ISO | DIN 766 | G4 | DIN 766 | ISO | G4 | DIN 766 | ISO | ||
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Slim Splice Quick®” system.
