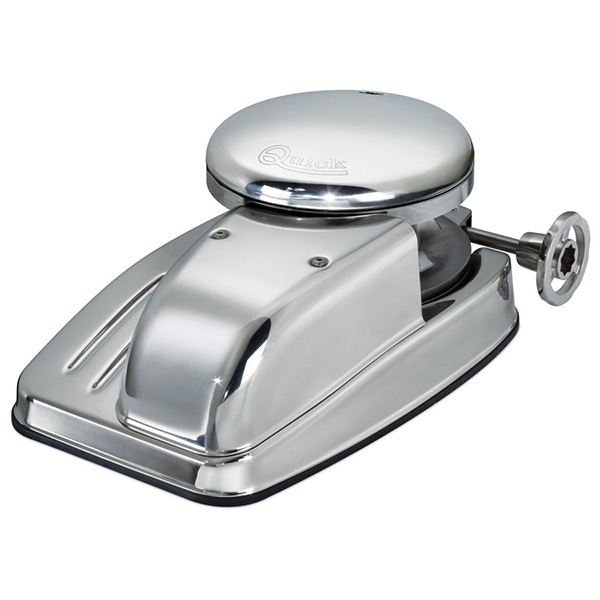

DK6 Y Vertical Windlass

DK6 Y Vertical Windlass

2024-01-10 0

SKU: DUKE-LCP - Categories: , , Tag:

Description

The Duke DK6 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval, chain stopper, and various gypsy sizes for rope and chain retrieval. Additional features include an IP66 watertight motor, anodized aluminum gearbox, and inspection lid. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.

Duke 3000 W DC 18 – 26 m 60 – 85 ft
Duke 3500 W DC 22 – 29 m 75 – 95 ft
Duke 4000 W AC 18 – 29 m 60 – 95 ft
Duke 5500 W AC 22 – 32 m 75 – 105 ft
Duke Hydro  20 – 32 m 60 – 105 ft

The indication may vary according to the boat type and the anchor-rode type

GYPSY 12-13 mm 14 mm – 1/2″ 16 mm
CHAIN 12 mm 13 mm 7/16″ 14 mm 14 mm 1/2″” 16 mm 16 mm
ISO DIN 766 G4 DIN 766 ISO G4 DIN 766 ISO

The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Slim Splice Quick®” system.
