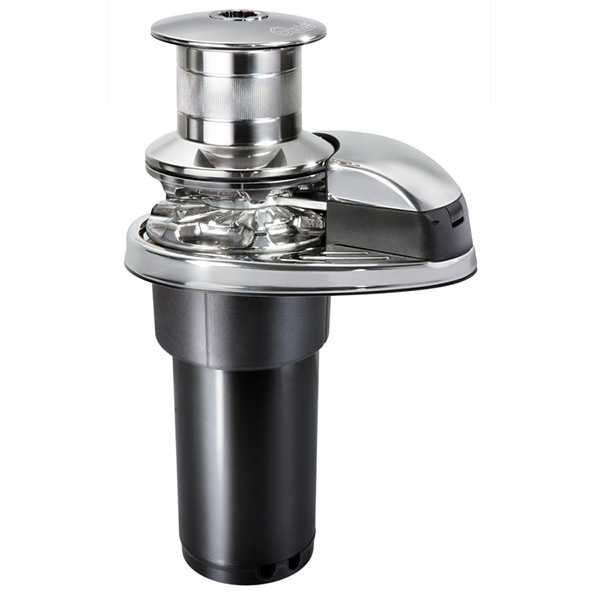

DP2E Vertical Windlass with Drum
Description
The Prince DP2E is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. Dp2E comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval. Additional features include an IP67 watertight motor, epicyclical gearbox, inspection lid, and easy drop-in installation. The unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.
| For boats from 6 to 12 meters (20 – 33 ft) | |||
| DP2E | 500W | 6-9 m | 18-29 ft |
| DP2E | 800W | 8-12 m | 26-38 ft |
|
Gypsy
|
6 mm | 7 mm – 1/4″ | 8 mm | 5/16″ | |||||
| Chain | 6 mm | 6 mm | 7 mm | 7 mm | 1/4″ | 1/4″ | 8 mm | 8 mm | 5/16″ |
| DIN 766 | ISO | DIN 766 | ISO | G4 | BBB | DIN 766 | ISO | G4 | |
| Rope | 1/2″ | 1/2″ | 1/2″ | 1/2″ | |||||
